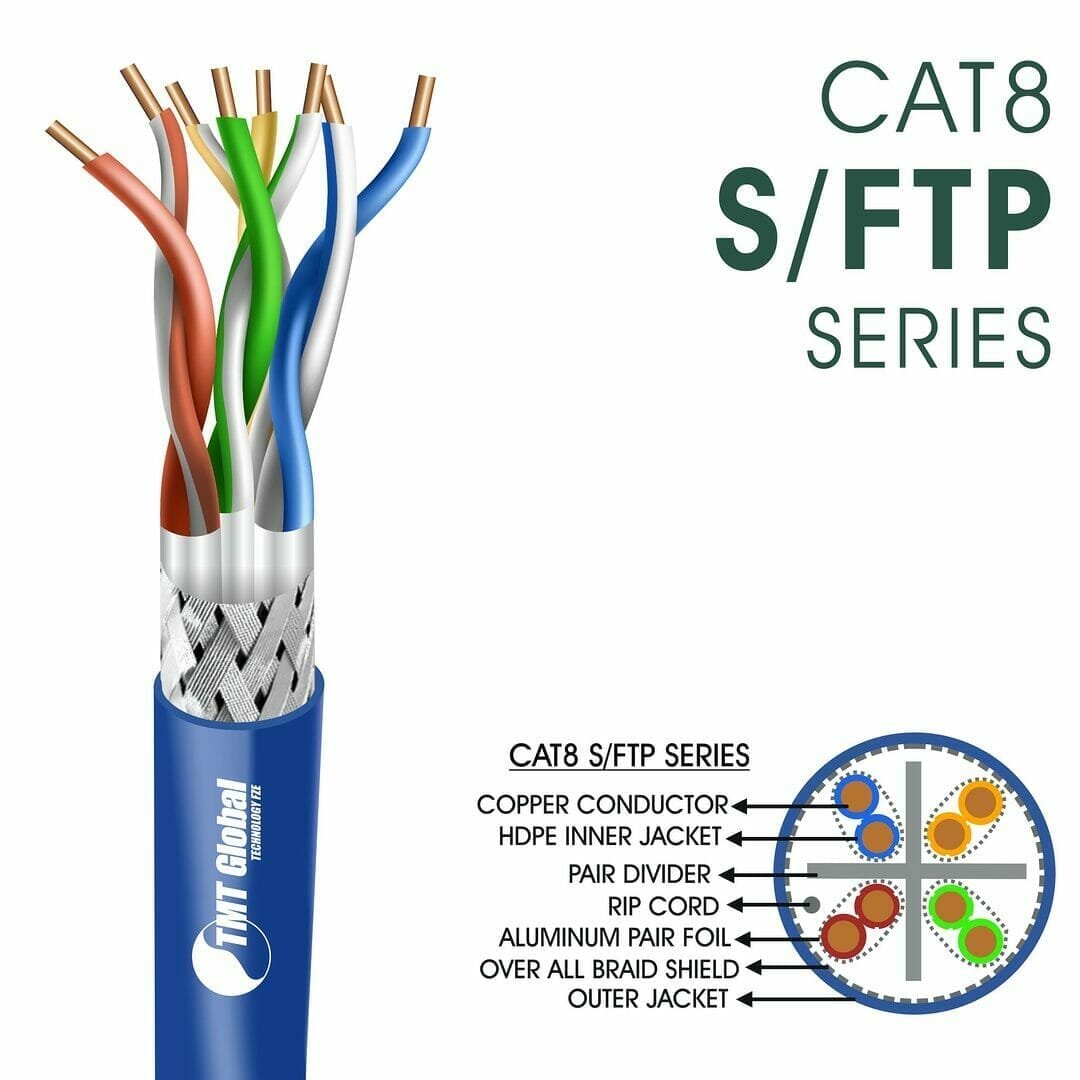

TMT Global cat8 Network Cable 23awg twisted Pair s-ftp LSZH 40ghz 305m the TMT Global Category 8 s-ftp Network cables are manufactured tested and complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -F). TMT Global Cat8 Series is Designed to ensure the highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business. cat8 Network Cable 23awg twisted Pair s-ftp LSZH 40ghz 305m PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: 23AWG TMT Copper Insulation: Polyolefin Number of insulated conductors: 8 twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Outer Jacket: LSZH Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N MAX Short Term Bend Radius: 6xOD (Mm) Storage Temperature: -20 To 80C Temperature operating range: -20 to 60C Installation temperature range: 0 to 50C Flame Test: IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100―6 Ohm @ 1-100 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc Coupling attenuation: IEC 61156-5 TYPE III
